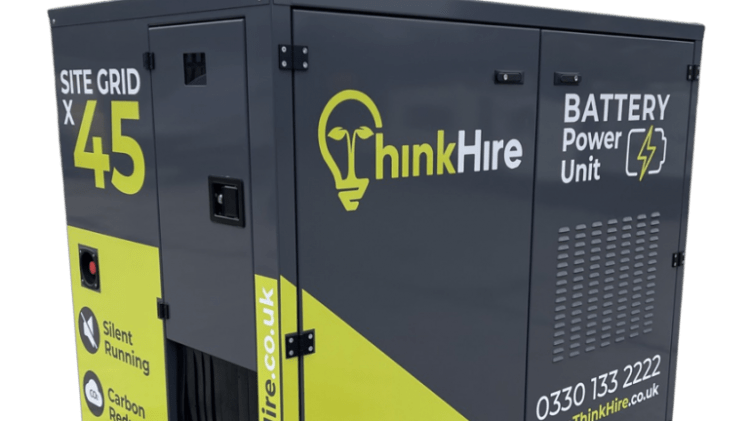

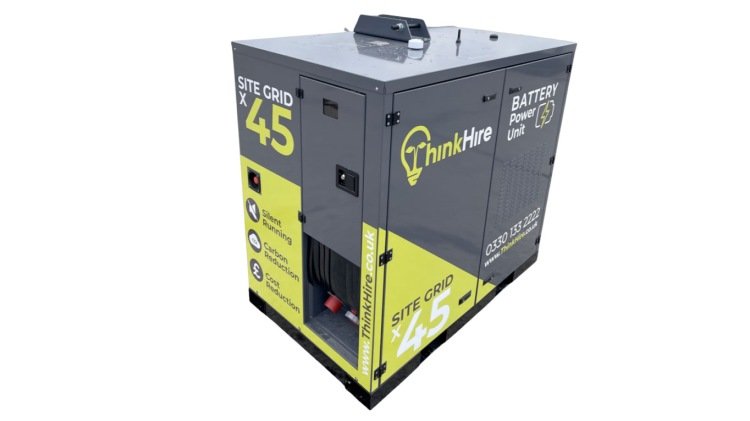

SiteGrid X45 BESS
Hybrid Battery Generator System
SiteGrid X45 is a hybrid power system that offers a convenient and efficient way to deliver power to any site environment without a grid connection, using generator power and renewables to store power in a battery bank. This significantly reduces emissions, the size of the generator required and fuel costs. Moreover, SiteGrid X45 has an optional Energy Management System (EMS) that allows all separate loads to be fed independently and programmed with their unique schedules for intelligent power management.
Reduced
C02 Emissions
Reduced
Fuel Costs
Reduced
Noise Pollution
Features & Benefits
Product Specifications
| Length | 1.86 m |
| Width | 1m |
| Height | 1.63 m |
| Weight | 1185 kg |
| Peak Power | 90 kVA |
| Phase Configuration | 3PH |
| Inverter Power | 45 kVA |
| Battery Type | Lithium LFP |
| Battery Capacity | 43.2 kWh |
| Battery Depth of Discharge | 95% |

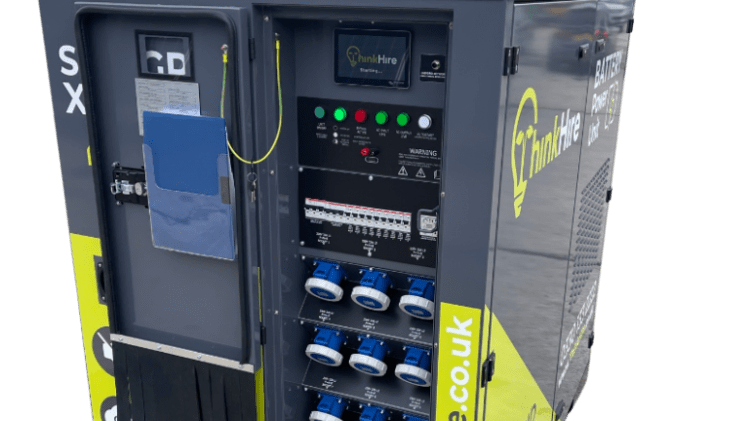

| Standard Outlets | 1x 125A 3PH 9x 32A 1PH |
| Input | 1x 125A 3PH |
| Transfer Switch | 3x 100A |
| Fan Assisted Cooling | -20 to +50°C |
Think Hire Brochure
We have over 60 years combined experience in the design, manufacture, hire and sale of innovative products, with an environmentally considerate power supply.
Our Range of Battery Energy Storage Systems
Environmentally considerate, cost-reducing, hybrid generators and portable power for hire and sale.
Related Products
Frequently Asked Questions
The SiteGrid X45 saves money by significantly reducing generator runtime and facilitating can be enabled to store and distribute renewable energy, from solar, wind and hydro. The SiteGrid X45 stores and distributes energy using smart energy management and optimisation software and hardware so that you can run your project at peak efficiency from battery and inverters with minimum generator or grid runtime. Reducing costs and avoiding carbon emissions and noise.
The SiteGrid X45 is ideal for any off-grid energy requirement that requires rapid deployment of power by turning diesel generators or grid in to a hybrid energy solution. These units cab be synchronised with generators from 20kVA to 60kVA in three phase configurations and linked with additional sets, up to 10, to provide higher power output.
The capacity of the SiteGrid X45 BESS is 45kWh. It delivers 45kVA of inverter power with a peak power of 90kVA. Multiple units can be connected to scale your power, or you can choose Think Hire industrial BESS range including the X500 with a capacity of up to 564kWh and peak power of 625kVA.
The SiteGrid X45 has been designed to optimise the capability of it's inverter system, store energy through rapid charging batteries that collectively and significantly reduce generator runtime. The X45 has been proven to be the optimum configuration of inverter, battery and smart socket control to deliver efficient energy upto 90kW in it's class.
Yes. The SiteGrid X45 is skid mounted and fully portable. It has forklift pockets at the base and strong, secure lifting eyes on the top. At just 1,185kg, its weight is well within the capacity of most on-site forklifts and cranes. The dimension are L: 1.86m, W: 1.0m and H: 1.36m.
The best option depends on how often you need portable, temporary power, and whether you have suitable, secure storage for the unit when not in use. Regular users will get better value from outright ownership, while occasional users will benefit from the flexibility of hiring.
The SiteGrid X45 has remote energy management and live energy reporting as standard via our pioneering Panorama software. This allows you to manage, monitor and report demands and energy efficiency while on or off site. The onboard EMS allows individual loads to be managed independently using intelligent power management.
Yes. One of the major benefits of using a BESS, such as the SiteGrid X45, is that it turns direct diesel generation into a hybrid power system which can include renewable energy inputs from wind, hydro or solar panels, while maintaining a dependable power supply on site.
Yes. By cutting the runtime of diesel generators, and facilitating the use of clean renewable energy, the SiteGrid X45 will significantly reduce emissions of CO2 and Nox, as well as particulate matter and noise pollution.
Yes. Smart energy management system, Panorama is embedded in the SiteGrid X45 BESS. This allows you to manage, monitor and report on energy use, efficiency, environmental impact and cost savings.
Most sites report savings of 80% or more on diesel generator fuel. The SiteGrid X45 also generates many other savings such as reduced fuelling and maintenance time for diesel generators, extended equipment life and far fewer costly interruptions.
Think Hire are the relocatable, renewable energy experts, with over 30years experience in supplying cost-effective, environmentally friendly power for off grid sites and infrastructure sectors. We are the pioneers and market leaders of relocatable renewable energy systems. We operate the widest and largest range of portable BESS systems in the UK and we are underpinned by industry leading software, giving our clients confidence in our operational performance and data integrity.
